The readout line, using both a circulator and customizable infrared filters, connects to cryogenic superconducting cables and low noise amplifiers at the 4K level. The entire line comes with extremely low attenuation and minimal heat generation. HQubit provides both SMA and SSMP connectors.

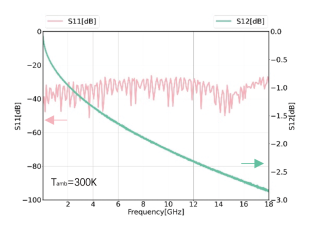

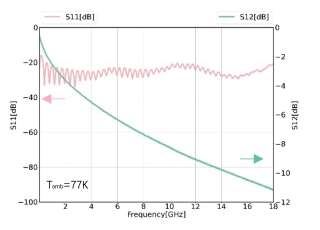

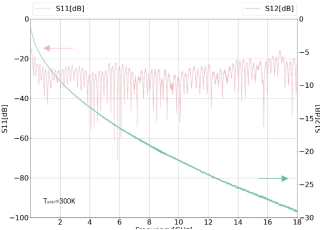

The SMA readout line test curve is shownright (includes CuNi cable, NbTi cable, tinned copper cable and adapters)
CuNi cable assembly
Superior temperature stability
High structural reliability
Low reflection
Superior power processing
Ultra-low loss
Customer length provided

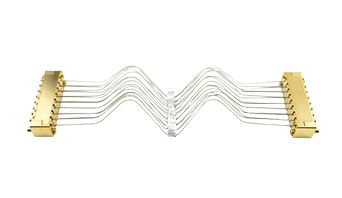

NbTi cable assembly
Ultra-low loss
Superior temperature stability
Low reflection
Superior power processing
High structural reliability
50K Low noise amplifier
Suppress signal source common mode noise
Amplification of the diferential mode signal
High gain

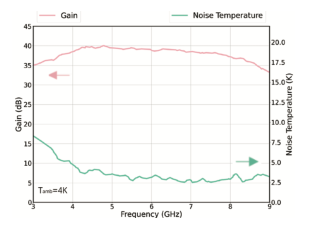

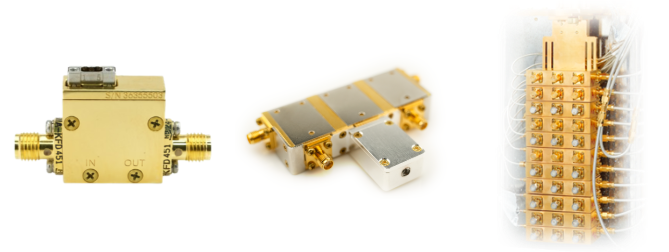

4K Low noise amplifier
Suppress signal source common mode noise
Amplification of the diferential mode signal
High gain
Stable performance at low temperature

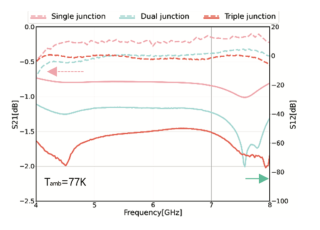

4-8/4-12GHz Cryogenic circulator
Compact structure
Excellent magnetic shielding
High isolation
Stable temperature range
Low insertion loss
