Integrated Machine

Module

Integrated System

Measurement and control electronics equipment adopts modular design, and electronic modules with different functions can be combined according to user needs, minimizing waste of resources while maintaining high integration. It also provides built-in high-performance X86 subsystem, which is used to realize local generation of measurement and control waveform, reduce waveform calculation load and transmission delay of measurement and control computer, and provides very good scalability.

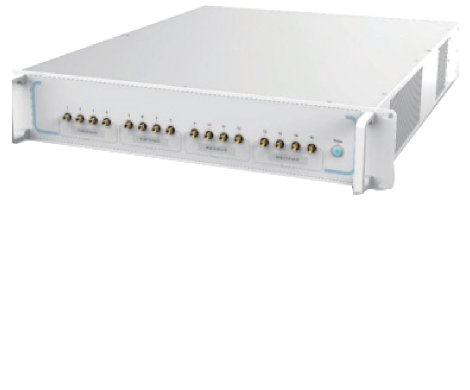

Quantum measurement & control integrated system

Features:

Chassis size : standard 1U chassis, depth 55cm;

Input/output interfaces: up to 24 channels, SMA interface;

Supports up to 3 electronics modules;

Built-in high performance X86 processor with local waveform calculation generation;

Power supply: 48V DC input;

Power: < 200 W;

Good cooling with fan design.

Customizable with fan, without fan.

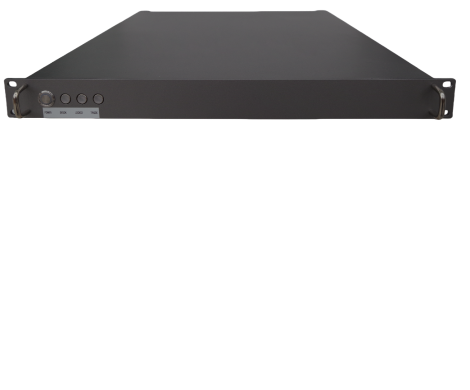

Fast Bias & DC integrated system

Features:

Chassis size : standard 2U chassis, depth 55cm;

Input/output interfaces: up to 32 channels, SMA interface;

Supports up to 4 electronics module;

Built-in high performance X86 processor with local waveform calculation generation;

Power supply: 22V AC input;

Power: < 200 W;

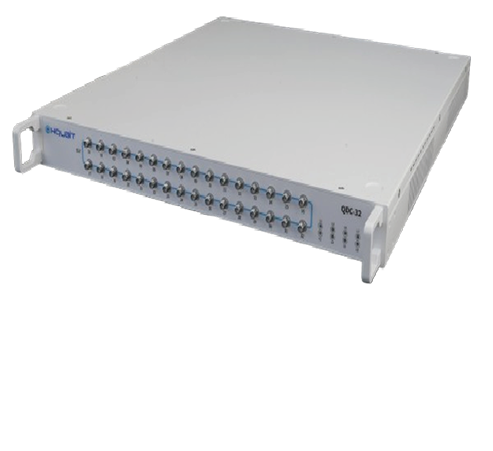

High-precision Adjustable DC Source

Features:

Chassis size : standard 1U chassis, depth 45cm;

Number of channels: 32;

Supports up to 4 electronics module;

Output amplitude: ±5V (1MΩ load);

Synchronous performance:Synchronization can be achieved between boards;

Clock and Trigger:The system supports clock and trigger distribution;

Power: <31.3W;

MODULE

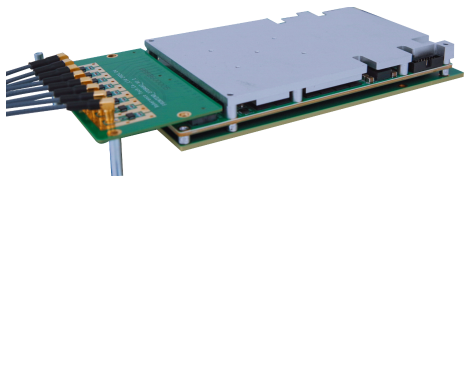

Microwave direct synthesis module

The integrated multi-channel microwave direct synthesis module can directly generate high-resolution, wide-band, and arbitrarily programmable microwave pulse waveforms. A built-in CPU is used for processing the waveform computational tasks of the channels within the module for scaling up.

Features:

Provides 8 channels of direct microwave pulse output;

Output interface: SMA 50 Ohm AC coupled;

DAC vertical resolution: 14 bit;

DAC sampling rate: 5 Gsps-9.8 Gsps, programmable ;

Output frequency range: 3 GHz-14 GHz, instantaneous bandwidth ≥3.5 GHz;

DAC channel output power: ≥-12 dBm @ 3.2 GHz-6.5 GHz; ≥-15 dBm @ 6.0 GHz-7.8 GHz;

Output phase noise: ≤-95 dBc/Hz @ 4.0 GHz, 1kHz offset; ≤-90 dBc/Hz @ 8.0 GHz, 1kHz offset;

Single-tone SFDR: ≤-55dBc @ 4.0 GHz-8.0 GHz;

Waveform length: ≥60us @ 8Gsps;

Channel isolation: ≥52dBc;

Built-in high-performance x86 processor, capable of local waveform computation and generation.

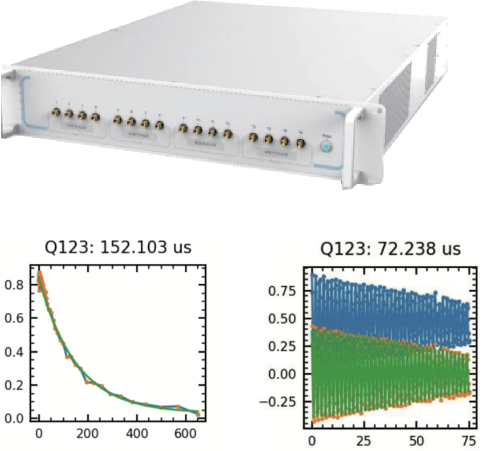

Quantum direct readout module

The integrated readout module provides 4-channel readout excitation channel, 4-channel readout signal direct acquisition channel, and maintains good synchronization between transceiver to ensure the long-term stability of quantum state readout. A single module supports simultaneous hardware demodulation, determination and statistics of up to 64 qubits. The built-in CPU is used to process the waveform computational tasks for scale expansion.

Features:

Provides 4 microwave direct output channels, 4 microwave direct acquisition channels;

Output/Input interface: SMA 50 ohm AC coupled;

DAC/ADC channel vertical resolution: 14 bit;

DAC sampling rate: adjustable in 200 Msps steps within the range of 5 Gsps - 9.8 Gsps;

Output frequency range: 3 GHz-12 GHz, with instanta neous bandwidth ≥3.5 GHz;

Output power: ≥-12 dBm @ 3.2 GHz-6.5 GHz; ≥-15 dBm @ 6.0GHz-7.8GHz;

Output phase noise: ≤-95 dBc/Hz @ 4.0 GHz, 1 kHz offset; ≤-90 dBc/Hz @ 8.0 GHz, 1 kHz offset;

Single-tone SFDR: ≤-55dBc @ 4.0 GHz-8.0 GHz;

Waveform length: ≥60 us @ 8 Gsps;

Channel isolation: ≥52dBc;

ADC sampling rate: adjustable in 200 Msps steps within the range of 2.0 Gsps - 4.8 Gsps;

Each ADC channel supports up to 16 modes hardware demodulation and determination, with the entire module supporting simultaneous demodulation, decision, and statistics for 64 qubits;

Supports feedback with a delay of about 200 ns;

Built-in high-performance x86 processor, capable of local waveform computation and generation.

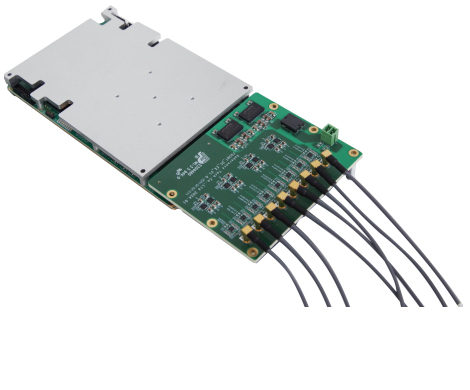

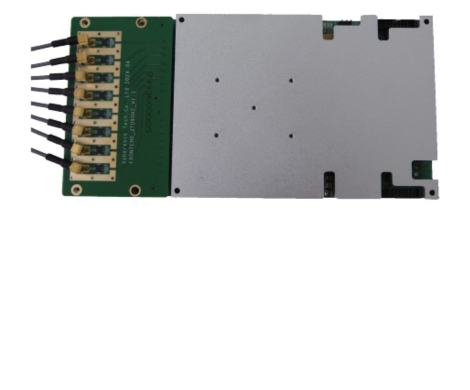

RF arbitrary waveform generation module

The 8-channel RF Arbitrary Waveform Generation Module (gen1) utilizes a high-performance DAC. It can be used to generate frequency modulated (Z-manipulated) waveforms and bias waveforms for qubits and tunable couplers, as well as for generating characteristic pulses required by other equipment/devices. The channels are well synchronized and can be synchronized with a clock reference and trigger.

Features:

Provides 8 channels of RF arbitrary waveform output;

Output interface: SMA 50 Ohm DC coupling;

DAC channel vertical accuracy: 16 bit;

DAC sampling rate: 2 Gsps;

DAC channel output bandwidth: DC-300 MHz;

Square wave pulse amplitude: up to 6 Vpp;

Output noise: ≤ -138.8 dBm/Hz @ DC-500 MHz;

SFDR: -42.5 dBc@100 MHz;

Supports automatic delay calibration and external trigger detection;

Supports built-in waveform distortion compensation;

Supports up to 254 arbitrary waveform sequences.

RF arbitrary waveform generation module

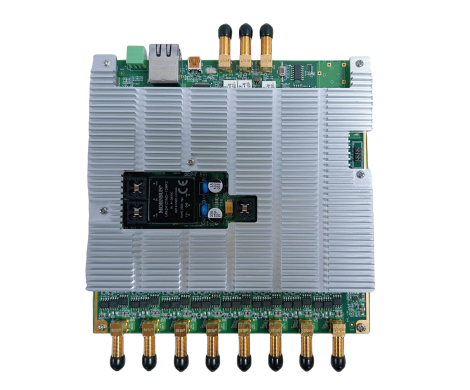

The second-generation fast Z & RF arbitrary waveform generation module is developed based on a high-performance RFSoC chip. The module can provide up to 24 independent output channels within a 1U standard rack, offering independent hardware distortion compensation. A built-in CPU is used for processing the waveform computational tasks for scalable extension.

Features:

Provides 8 channels of high-speed RF arbitrary waveform output;

Output interface: SMA 50 Ohm DC coupled;

DAC vertical resolution: 14 bit;

DAC sampling rate: Supports 2 Gsps - 8 Gsps, with 200Msps step-adjustable;

Output frequency range: DC-2.5 GHz, instantaneous bandwidth ≥ 2 GHz;

DC pulse amplitude: 1.5 Vpp;

Output noise spectrum density: ≤-138 dBm/Hz;

Single-tone SFDR: ≤ -55 dBc @ 50 MHz - 2.0 GHz (excluding HD2, HD3);

Waveform length: ≥ 60 us @ 8 Gsps;

Channel isolation: ≥ 52 dBc;

Built-in hardware pre-distortion compensation for pulse edge correction;

Built-in high-performance x86 processor, capable of local waveform computation and generation.

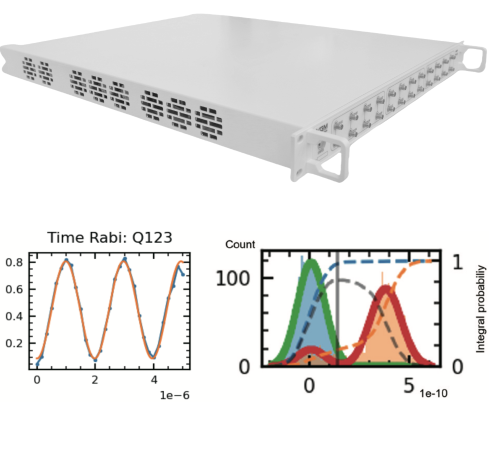

Power/Clock/Trigger distribution & synchronization module

To meet the needs of extension, a power/clock/trigger distribution & synchronization module is provided. It supplies DC power, clocks, and trigger distribution to other measurement and control modules, ensuring good synchronization between the output/input channels of each module. The module offers up to 12 channels of 48V DC output, 12 channels of reference clock distribution, and 12 channels of trigger signal distribution.

Features:

19-inch standard 1U rack, providing support for 12 sets of equipment expansion;

Supports lockable AC power input, up to 3200 W;

Supports 12 channels of DC power output interfaces at 250 W @ 48~52 V;

Supports 12 channels of SMA 50 ohm reference clock output interfaces;

Supports 1 channel of SMA 50 ohm reference clock input;

Supports 1 channel of SMA high-impedance trigger signal input;

Supports RJ-45 Gigabit Ethernet communication control interface;

Supports monitoring of device status.

Supports 12 channels of SMA high-impedance trigger signal output interfaces;

Power/Clock/Trigger distribution & synchronization module

Features:

Number of channels for clock reference signal distribution: 20;

Reference clock input: 10 MHz;

Reference clock output: 10MHz/100MHz/250MHz adjustable;

Number of trigger signal distribution channels: 20;

Support 1 channel SMA high resistance trigger signal input;

Support RJ-45 Gigabit Ethernet communication control interface;

Support equipment working status monitoring;

Multi-Channel Precision DC Source

The multichannel precision DC source module provides high stability, low noise DC output, ideal for experiments requiring stable, low noise DC bias. Four modules can be integrated into a 1U chassis, providing up to 32 DC output channels. With vertical resolution up to 20 bits and noise levels below 10nV, the module provides fine and clean DC signals for a variety of experiments. Each output channel can also be operated in pulse mode, providing additional convenience for certain experiments.

Features:

Number of output channels: 8;

Output amplitude: ±5V (1MΩ load);

Output vertical resolution: 20 bits;

Output noise spectral density: 10 ;

Output stability: < 5ppm/10h;

Support RJ-45 Gigabit Ethernet communication control interface.
